VioFlame custom series burners make it easy to bring your own personalised fire project together.

VioFlame custom series burners let you experience the look and feel of a real fireplace, in virtually any room or outdoor area, without the mess, inconvenience or high cost associated with other traditional forms of fireplaces.

VioFlame custom burners are both visually exciting and functional, instantly transforming a room or outdoor area into a beautiful and inviting living space. VioFlame custom series burners are ideal for creating mood and ambience.

Offering true versatility, VioFlame custom series burners fireplaces are ideal for indoor and outdoor applications including living rooms, entertainment areas, outdoor fireplaces and even poolside effects.

VFBURNLG

Large Stainless Steel Burner

Features

2 litre (1/2 Gal) Stainless steel burner
Large single opening / Large flame
Twin layer body - burner reservoir and safe tray
High quality, heavy duty construction
Stainless steel control wand
Stainless steel snuffer (shut off) plate
Comprehensive owners manual and installation guide
12 month warranty

Ideal burner for custom installations

RRP: $279.00

Specifications
Burner Capacity	2.0 litres \| 0.5 Gal
Maximum Heat Output	14,000 BTU \| 4.0 KW
Burn Duration	6-8 hours
Weight	7.5 lbs \| 3.4kgs

Dimensions
A	340mm \| 13.5"
B	130mm \| 5.5"
C	105mm \| 4.5”
D	300mm \| 12”
E	100mm \| 4”

Important

VioFlame custom series burners must be installed according to the instructions and guidlines supplied. Burners must be installed in a non combustible base and enclosure and are required to be installed with particular attention to heat and ventilation clearances.

We strongly recommend you do not commence installation preparations, or create a cutout for the burner until you have purchased the burner and checked its dimensions against your plans.

*Recommended maximum heating area does not apply to outdoor installations.

Minimum room size and ventilation requirements apply to all models. Please read the full installation and owner's manual supplied with your fireplace before installing or operating.

See how to use videos

VFBURNXL

Extra Large Stainless Steel Burner

Features

5 litre (1 Gal) Stainless steel burner
Large single opening / Large flame
Twin layer body - burner reservoir and safe tray
High quality, heavy duty construction
Stainless steel control wand
Stainless steel snuffer (shut off) plate
Comprehensive owners manual and installation guide
12 month warranty

Ideal burner for custom installations

RRP: $449.00

Specifications
Burner Capacity	5.0 litres \| 1.0 Gal
Maximum Heat Output	14,000 BTU \| 4.0 KW
Burn Duration	8-16 hours
Weight	9.0 lbs \| 4.1kgs

Dimensions
A	395mm \| 15.5"
B	165mm \| 6.5"
C	115mm \| 4.5”
D	356mm \| 14”
E	140mm \| 5.5”

Important

We strongly recommend you do not commence installation preparations, or create a cutout for the burner until you have purchased the burner and checked its dimensions against your plans.

See how to use videos

VFBXL600W

Extra large 600mm wide stainless steel ethanol burner with twin flame pattern.

Features

6 litre (1.5 Gal) Stainless steel burner
Twin opening / large flame pattern
Twin layer body - burner reservoir and safe tray
High quality, heavy duty construction
Stainless steel control wand
Stainless steel snuffer (shut off) plate
Comprehensive owners manual and installation guide
12 month warranty

Ideal burner for custom installations where a dramatic, wide pattern flame is desired.

RRP: $649.00

Specifications
Burner Capacity	6.0 litres \| 1.5 Gal
Maximum Heat Output	18,700 BTU \| 5.5 KW
Burn Duration	6-16 hours
Weight	13.0 lbs \| 6.0kgs

Dimensions
A	600mm \| 23.6"
B	165mm \| 6.5"
C	115mm \| 4.5”
D	560mm \| 22”
E	135mm \| 5.3”

Important

We strongly recommend you do not commence installation preparations, or create a cutout for the burner until you have purchased the burner and checked its dimensions against your plans.

See how to use videos

VFBR350SQ

Large Square Stainless Steel Burner

Features

5 litre (1 Gal) Round stainless steel burner with dress ring / firebead tray
Self regulating flame design
Includes stainless steel cover plate
Includes pack of decorative firebeads
Owners manual
12 month warranty

Ideal burner for large custom installations

RRP: $479.00

Specifications
Burner Capacity	5.0 litres \| 1.0 Gal
Maximum Heat Output	14,000 BTU \| 4.0 KW
Burn Duration	3 hours
Weight	21 lbs \| 9.5kgs

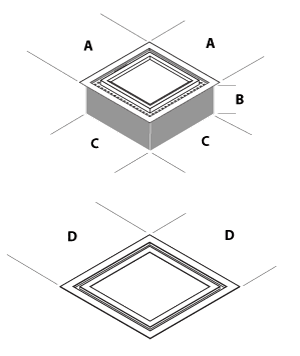

Dimensions
A	350mm \| 13.7"
B	150mm \| 5.9"
C	310mm \| 12.2”
D	450mm \| 17.7”

Important

VioFlame Custom Burners must be installed according to the instructions supplied.

Burners must be installed in a non combustible base and enclosure.

We strongly recommend you do not commence installation preparations, or create a cutout for the burner until you have purchased the burner and checked its dimensions against your plans.

See how to use videos

VFBR380RD

Extra Large Stainless Steel Burner

Features

5 litre (1 Gal) Round stainless steel burner with dress ring / firebead tray
Self regulating flame design
Includes stainless steel cover plate
Includes pack of decorative firebeads
Owners manual
12 month warranty

Ideal burner for large custom installations

RRP: $499.00

Specifications
Burner Capacity	5.0 litres \| 1.0 Gal
Maximum Heat Output	14,000 BTU \| 4.0 KW
Burn Duration	3 hours
Weight	19.1 lbs \| 8.7kgs

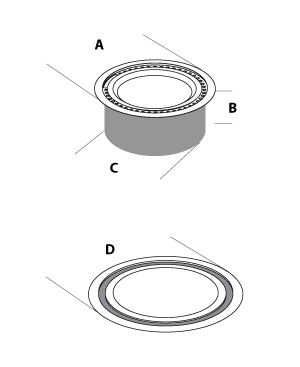

Dimensions
A	380mm \| 14.9"
B	150mm \| 5.9"
C	340mm \| 13.3”
D	482mm \| 18.9”

Important

VioFlame Custom Burners must be installed according to the instructions supplied.

Burners must be installed in a non combustible base and enclosure.

We strongly recommend you do not commence installation preparations, or create a cutout for the burner until you have purchased the burner and checked its dimensions against your plans.

See how to use videos
